* * * U.S. TYPE FORGED CHAIN SHACKLE G210 * * *

ITEM NO Nominal
Size
(in.)
Working
Load Limit
(tons)
Dimensions
(in.)
Weight Each
(lbs.)

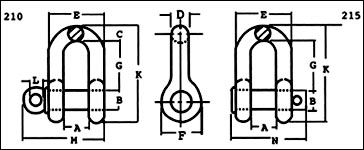

A B C D E F G K L M N G-210
S-210
G-2150
S-2150
1/4 1/2 .47 .31 .25 .25 .97 .61 .88 1.59 .19 1.38 1.34 .11 .10
5/16 3/4 .53 .38 .31 .31 1.16 .75 1.03 1.91 .22 1.66 1.59 .17 .18
3/8 1 .66 .44 .38 .38 1.41 .91 1.25 2.30 .25 2.03 1.86 .24 .25
7/16 1-1/2 .75 .50 .44 .44 1.63 1.06 1.44 2.66 .31 2.38 2.13 .40 .38
1/2 2 .81 .63 .50 .50 1.81 1.19 1.63 3.03 .38 2.69 2.38 .59 .50
5/8 3-1/4 1.06 .75 .62 .63 2.31 1.50 2.00 3.75 .44 3.34 2.91 1.21 1.21
3/4 4-3/4 1.25 .88 .81 .75 2.75 1.81 2.38 4.53 .50 3.97 3.44 2.25 2.00
7/8 6-1/2 1.44 1.00 .97 .88 3.19 2.09 2.81 5.33 .50 4.50 3.81 3.16 3.28
1 8-1/2 1.69 1.13 1.00 1.00 3.69 2.38 3.09 5.94 .56 5.07 4.53 4.75 4.75
1-1/8 9-1/2 1.81 1.25 1.25 1.13 4.06 2.69 3.58 6.78 .63 5.59 5.13 6.75 6.3
1-1/4 12 2.03 1.38 1.38 1.25 4.53 3.00 3.94 7.50 .69 6.16 5.50 9.06 9.00
1-3/8 13-1/2 2.25 1.50 1.50 1.38 5.00 3.31 4.38 8.28 .75 6.84 6.13 11.63 12.00
1-1/2 17 2.38 1.62 1.62 1.50 5.38 3.62 4.81 9.06 .81 7.35 6.50 15.95 16.15
1-3/4 25 2.88 2.12 2.12 1.75 6.38 4.19 5.75 10.97 1.00 9.08 7.75 26.75 29.96
2 35 3.25 2.00 2.00 2.00 7.25 4.81 6.75 12.28 1.22 10.34 8.75 40.31 43.25
2-1/2 55 4.13 2.62 2.62 2.62 9.38 5.69 8.00 14.84 1.38 13.00 - 71.75 -
3 85 5.00 3.25 3.00 3.00 10.90 6.50 8.50 16.38 1.45 14.57 - 93.7 -
